pioneer in vane technology, and our durable mobile vane pumps are built for high pressures and high performance. They are available with a wide range of bearing and valve options to meet the needs of many different applications.
High-pressure square vane pumps
The high pressure square vane pump series delivers durable, high‑performance output in flexible single and double configurations. With fixed‑displacement capacities covering the full range of V10 and V20 series pumps, the pressure balanced vane design reduces flow pulsations and noise while extending pump life and improving serviceability. Double pump configurations allow a single power source to drive two separate hydraulic systems or combine output for higher flow. In addition, optional integrated valves help to simplify system design and installation. Compatible with oil and synthetic fire‑resistant fluids, the series offers versatile mounting and efficient power use for modern hydraulic systems.

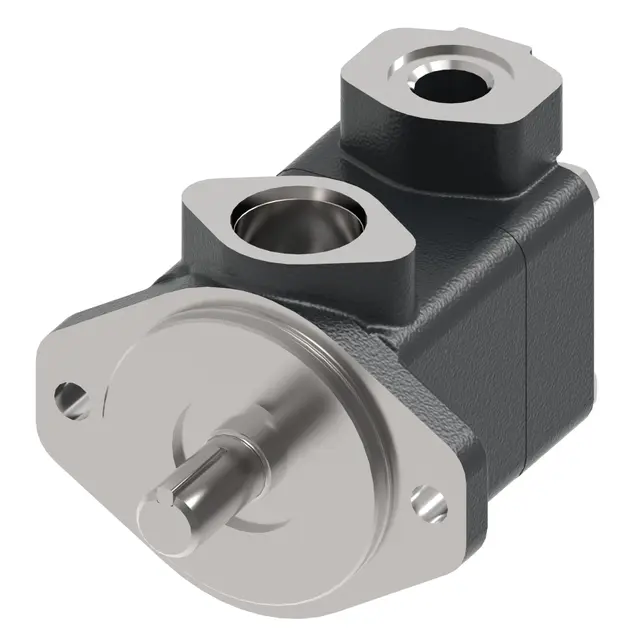

V10 HP single square vane pumps
The V10H Single Square Vane Pump delivers durable, high‑performance output with fixed‑displacement from 3.2 cm3 to 22.4 cm3 [0.2 in3 to 1.37 in3]. Its pressure balanced vane design reduces flow pulsations and noise while extending pump life and improving serviceability. In addition, optional integrated valves help simplify system design and installation. Compatible with oil and synthetic fire‑resistant fluids, it offers versatile mounting and efficient power use for modern hydraulic systems.
Features and benefits :
- Durable construction built for demanding industrial and mobile environments
- Balanced vane design delivers smooth, efficient hydraulic performance
- High pressure capability with low vane tip loading
- Optimized inlet flow paths support reliable high‑speed operation
- Compatible with oil and synthetic fire‑resistant fluids
- Versatile mounting options for flexible system integration
- Low horsepower demand enhances overall cost‑to‑performance value
Applications :
- Power steering
- Fan drives
- Sweepers
- Lift trucks
- Charge pumps
- Small power units
- Recirculation applications

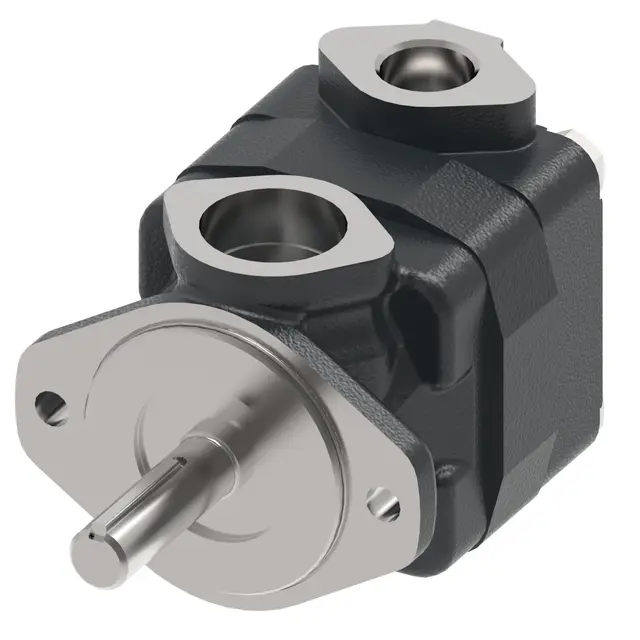

V20 HP single square vane pumps
The V20H single square vane pump delivers durable, high‑performance output with fixed‑displacement from 15.8 cm3 to 41.7cm3 [1.0 in3 to 41.7 in3]. Its pressure-balanced vane design reduces flow pulsations and noise while extending pump life and improving serviceability. In addition, optional integrated valves help simplify system design and installation. Compatible with oil and synthetic fire‑resistant fluids, it offers versatile mounting and efficient power use for modern hydraulic systems.
Features and benefits :
- Rugged construction ensures long service life in harsh environments
- Balanced vane design supports smooth, efficient hydraulic performance
- High pressure capability with low vane tip loading
- Optimized inlet geometry enables reliable high‑speed operation
- Compatible with oil and synthetic fire‑resistant hydraulic fluids
- Compact single‑housing design simplifies installation and integration
- Low horsepower demand delivers excellent cost‑to‑performance value
Applications :
- Power steering
- Fan drives
- Sweepers
- Lift trucks
- Charge pumps
- Small power units
- Recirculation applications

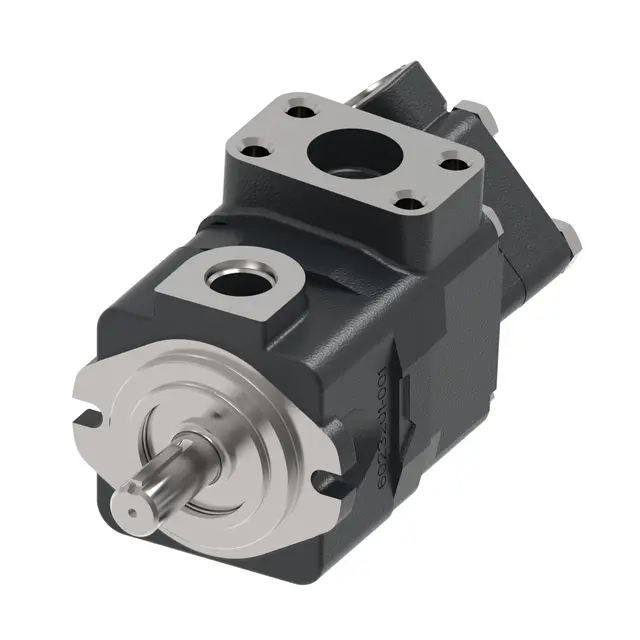

V2010 HP double square vane pumps
The V2010H double square vane pump delivers high‑performance, fixed‑displacement output with balanced vane construction and capacities of 15.8 cm3 to 41.7 cm3 [1.0 in3 to 41.7 in3] on the shaft‑end section and 3.2 cm3 to 22.4 cm3 [0.2 in3 to 1.37 in3] on the cover‑end section. Double pumps use one power source to run two separate hydraulic systems or combine their output to move more fluid. Because both pumps are in one housing, the setup is smaller, easier to install, and works with a single shaft connection. In addition, optional integrated valves help simplify system design and installation. Compatible with oil and synthetic fire‑resistant fluids, this setup offers versatile mounting and efficient power use for modern hydraulic systems.
Features and benefits :
- Balanced pressure chambers reduce radial loads for longer bearing life
- Low vane loading enables efficient, high‑pressure performance
- Optimized inlet geometry supports reliable high‑speed operation
- Dual‑section design powers two circuits or combined flow delivery
- Compatible with oil and synthetic fire‑resistant hydraulic fluids
- Standard SAE 2‑bolt mounting simplifies installation
- Efficient design delivers strong horsepower‑per‑dollar value
Applications :
- Power steering
- Fan drives
- Sweepers
- Lift trucks
- Charge pumps
- Small power units
- Recirculation applications

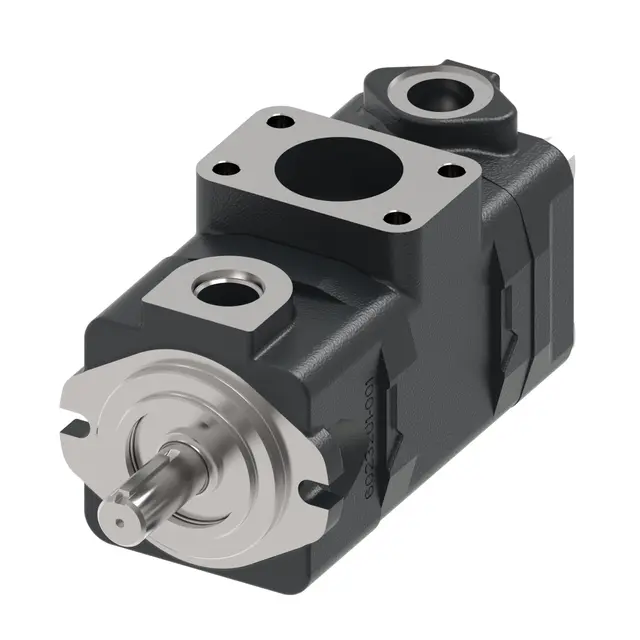

V2020 HP double square vane pumps
The V2020H double square vane pump delivers high‑performance, fixed‑displacement output with balanced vane construction and capacities of 15.8 cm3 to 41.7 cm3 [1.0 in3 to 41.7 in3] on the shaft‑end section and on the cover‑end section. Double pumps use one power source to run two separate hydraulic systems or combine their output to move more fluid. Because both pumps are in one housing, the setup is smaller, easier to install, and works with a single shaft connection. In addition, optional integrated valves help simplify system design and installation. Compatible with oil and synthetic fire‑resistant fluids, this setup offers versatile mounting and efficient power use for modern hydraulic systems.
Features and benefits :
- Balanced pressure chambers reduce radial loads for extended bearing life
- Low vane loading supports efficient, high‑pressure performance
- Optimized inlet paths ensure reliable filling at high speeds
- Dual‑section design powers two circuits or combined output
- Compatible with oil and synthetic fire‑resistant hydraulic fluids
- Standard SAE 2‑bolt mounting simplifies installation
- Efficient design maximizes horsepower value per pump investment
Applications :
- Power steering
- Fan drives
- Sweepers
- Lift trucks
- Charge pumps
- Small power units
- Recirculation applications
