Danfoss Hydraulic Motors

Xcel series XLH spool-valve motors for low- and medium-duty applications are built to optimize performance and value. They are available with displacements from 53 cm 3  to 485 cm 3  [3.2 in 3  to 30 in 3 ] to provide reliable, proven solutions backed by Danfoss expertise.

Features and benefits :

• Proven orbit motor principle
• Hydrodynamic journal bearings
• Three moving components (Gerotor-star, drive, and shaft)
• Three-zone pressure design
• Compact, powerful package
• High efficiency
• Long bearing life (at rated loads)

Applications :

• Salt and sand spreaders
• Street cleaner brushes
• Combine reel drives
• Feed-grinding augers
• Auger swing drives
• Stake-down motors

Xcel series XLS spool-valve motors for low- and medium-duty applications are built to optimize performance and value. They are available with displacements from 50 cm 3  to 395 cm 3  [3.1 in 3  to 24 in 3 ] to provide reliable, proven solutions backed by Danfoss expertise.

Features and benefits :

• Proven orbit motor principle
• Hydrodynamic journal bearings
• Three moving components (Gerotor-star, drive, and shaft)
• Three-zone pressure design
• Compact, powerful package
• High efficiency
• Long bearing life (at rated loads)

Applications :

• Salt and sand spreaders
• Street cleaner brushes
• Combine reel drives
• Feed-grinding augers
• Auger swing drives
• Stake-down motors

Xcel series XL2 disc-valve motors optimize value and performance for low-and medium-duty applications. Available with displacements from 80 cm 3  to 490 cm 3  [4.9 in 3  to 29.9 in 3 ], they provide reliable, proven solutions based on Danfoss expertise.

Features and benefits:

• Variety of mounting flanges and output shafts
• Three-zone design for longer life and true bi-directionality
• Bearings that meet the highest standards of the industry
• Options to optimize performance in every application
• Integrated cross-over relief and counterbalance valve options
• High efficiency
• Flexibility in designing these motors into systems

Applications :

• Salt and sand spreaders
• Street cleaner brushes
• Combine reel drives
• Feed-grinding augers
• Auger swing drives
• Stake-down motors

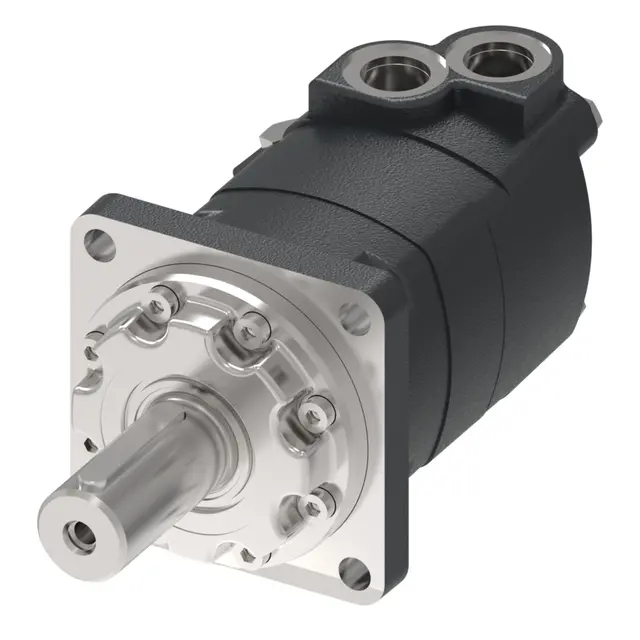

Xcel series XL4 disc-valve motors optimize value and performance for low- and medium-duty applications. Available with displacements from 160 cm 3  to 495 cm 3  [9.76 in 3  to 30.2 in 3 ], they provide reliable, proven solutions based on Danfoss expertise.

Features and benefits:

• Variety of mounting flanges and output shafts
• Three-zone design for longer life and true bi-directionality
• Bearings that meet the highest standards of the industry
• Options to optimize performance in every application
• Integrated cross-over relief and counterbalance valve options
• High efficiency
• Flexibility in designing these motors into systems

Applications :

• Salt and sand spreaders
• Street cleaner brushes
• Combine reel drives
• Feed-grinding augers
• Auger swing drives
• Stake-down motors

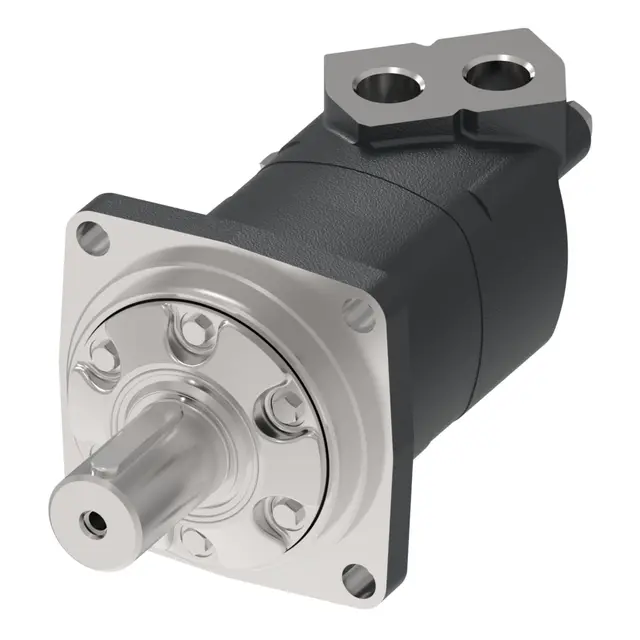

Xcel series XL6 disc-valve motors optimize value and performance for low- and medium-duty applications. Available with displacements from 195 cm 3  to 985 cm 3  [11.9 in 3  to 60 in 3 ], they provide reliable, proven solutions based on Danfoss expertise.

Features and benefits :

• Variety of mounting flanges and output shafts
• Three-zone design for longer life and true bi-directionality
• Bearings that meet the highest standards of the industry
• Options to optimize performance in every application
• Integrated cross-over relief and counterbalance valve options
• High efficiency
• Flexibility in designing these motors into systems

Applications :

• Salt and sand spreaders
• Street cleaner brushes
• Combine reel drives
• Feed-grinding augers
• Auger swing drives
• Stake-down motors

OMT, OMV Large sized motors

• Motors with integrated positive holding brake
• Motors with integrated negative holding brake
• Hydraulic Motors with integrated flushing valve
• Motors with speed sensor
• Motors with tacho connection

Applications :
Construction equipments, Agricultural equipments, Material handling & Lifting equipments, Forestry equipments, Mining Equipments, Marine equipments.

Specifications :

OMT

• Displacement : Min. 160cc/rev. – Max. 500cc/rev.
• Maximum Output : Intermediate – 54 hp

OMV

• Displacement : Min. 315cc/rev. – Max. 800cc/rev.
• Maximum Output : Intermediate – 86 hp

TMK, TMKW & TMK FL motors

• Motors with corrosion resistant parts
• Wheel motors with recessed mounting flange
• Motors with speed sensor
• Motors with tacho connection

Applications :
Construction equipments, Agricultural equipments, Material handling & Lifting equipments, Forestry equipments, Mining Equipments, Marine equipments.

Specifications :
TMK, TMKW & TMK FL

• Displacement : Min. 160cc/rev. – Max. 470cc/rev.
• Maximum Output : Intermediate – 36 hp

WD, WP & WR Motors

• Built-in check valves offer versatility and increased seal life.
• A variety of mounts and shafts provide flexibility in application design.
• Spool valve design gives superior performance and smooth operation over a wide speed and torque range.
• Integral rotor design provides smooth performance, compact volume and low weight.
• Low port profiling is suitable for applications with limited space.

Applications :
Light Duty applicaions in Agriculture Equipment, Conveyors, Carwashes, Sweepers, Food processing, Grain augers, Spreaders, Feed rollers, Brush drives.

Specifications :
WD

• Displacement : Min. 25cc/rev. – Max. 385cc/rev.

WP

• Displacement : Min. 25cc/rev. – Max. 388cc/rev.

WR

• Displacement : Min. 40cc/rev. – Max. 400cc/rev.

WG Motors

• Needle Roller Bearing is in optimum location to allow load to be placed as close to the center line of bearing as possible.
• High Pressure Buna® Shaft Seal offers superior seal life and performance and eliminates the need for a case drain.
• Heavy-Duty Drive Link receives full flow lubrication to provide long life.
• Roller Stator® Hydraulic Motor Design increases efficiency and life by using roller contact versus solid, sliding contact design.
• Rubber Energized Steel Face Seal does not extrude or melt under high pressure or high temperature.

Applications :
Light and Medium Duty applicaions in Conveyors, Carwashes, Positioners, light to medium-duty Wheel drives, Sweepers, Grain augers, Spreaders, Feed rollers, Screw drives, Brush drives

Specifications :
WG

• Displacement : Min. 41cc/rev. – Max. 404cc/rev.

WS Motors

• Twelve shaft and ten mounting options to meet the most common SAE and European requirements.
• Heavy- duty tapered roller bearings for extra side load capacity.
• Three zone commutator valve for high flow capacity.
• Standard case drain with integral internal drain for extended shaft seal life

Applications :
Medium Duty Agricultural Equipments, Wheel drives, Sweepers, Grain augers, Spreaders, Feed rollers, Brush drives, Mowers, Harvesting equipment gear box mounts

Specifications :
WS

• Displacement : Min. 79cc/rev. – Max. 495cc/rev.

EMD Speed Sensor for Hydraulic Motors

Applications :
LSHT-motors of series OMM, OMP X, OMR, OMS, OMT, OMV.

Specifications :

• Speed and Direction output
• Highest resolution
• Easy mounting
• IP 69K

TMVW motors

• Short motors without bearings
• Motors with integrated positive holding brake
• Motors with integrated negative holding brake
• Motors with integrated flushing valve
• Hydraulic Motors with speed sensor

Applications :

Wheel Drive for Construction equipments, Agricultural equipments, Material handling & Lifting equipments, Forestry equipments, Mining Equipments, Marine equipments.

Specifications :
TMVW :

• Displacement : Min. 400cc/rev. – Max. 800cc/rev.
• Maximum Output : Intermediate – 150 hp

Overview of Danfoss Hydraulic Motor portfolio in the world, including great insights on key applications.
